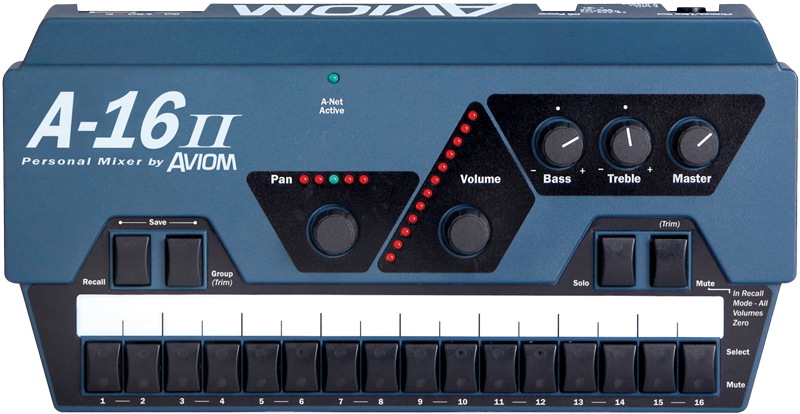

The A-16II Personal Mixer allows each performer to create a unique, customized monitor mix on stage or in the studio.

Click the image to close. | Click and drag to move. | Click here to print this image. | Click here for hi-res product photos.

Features | Product Details | Systems | Specs | Show All

Features

16-channel stereo mixer with fully adjustable pan per channel
Sixteen Preset locations for storing custom mixes
Channel solo, mute, and group functions
Global trim for reducing all channel volumes
Intuitive interface with no menus or screens to navigate
Mounts easily on a mic stand with the optional MT-1 Mic Stand Mount

A-16II User Guide
BRK-1 Personal Mixer Repair Kit Instructions
A-16II Data Sheet
MT-X Data Sheet
A-16II and A-16CS Labels
Pro16 System Builder
A-16II Quick Start Card
Monitor Mixing in Rehearsal
Improved Cue Mixing in the Studio
Monitor Mixing in Houses of Worship
Personal Monitor Mixing with Engineer Control
Using Personal Mixers with Wireless Monitor Systems
Aviom Pro16 Series Brochure
Aviom Pro64 Series Brochure
Aviom & the House of Worship

See how people are using Aviom products in our Case Studies.

Product Details

The A-16II allows individual performers to create custom monitor mixes tailored to their individual needs. Designed for use in live performance or in the studio, the A-16II Personal Mixer gives each performer control over channel volume, grouping, pan, stereo spread, and master volume and tone. Every Personal Mixer in a system can create a unique monitor mix for a performer. Users can save and recall up to sixteen custom mixes as presets in their Personal Mixer.

Stereo output for wired or wireless

The stereo output from the A-16II can be used to drive wired or wireless in-the-ear monitors, headphones, powered floor wedges, an amplifier, or spot monitors.

The A-16II Personal Mixer is fully compatible with all Pro16® Series products, including Aviom's digital interface card for Yamaha® digital mixing consoles. Support for Aviom monitor mixing is available in the form of console interface cards from an ever- increasing list of digital console manufacturers including Digidesign®, Soundcraft®, Innovason®, etc. Look for the A-Net Active^™ logo, and see our Partners page for additional information.

Daisy-chain and power

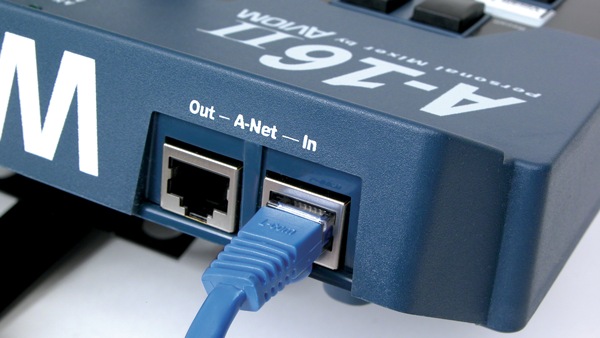

Mixers can be daisy-chained or connected in parallel using an A-Net Distributor. Parallel connections also allow power to be supplied to the mixers over the Cat-5e cable. As with all Pro16 Series products, Cat-5e cable runs of up to 500 feet (150 meters) are possible between devices, and there is no limit to the number of mixers in a system.

Systems

Basic Four-Mix Personal Mixing System

This system provides customized control of monitor mixes to four performers. Each performer can select the listening device of his or her choice; shown here are headphones, wired and wireless IEMs, and a powered wedge. The AN-16/i at front of house takes up to 16 channels from the console, converts the audio to digital, and outputs a digital stream over a single Cat-5e cable. The A-16D Pro in the equipment rack off-stage supplies digital audio and DC power over Cat-5 cables to the individual Personal Mixers.

Click the image to close. | Click and drag to move. | Click here to print this image.

MORE SYSTEMS: Monitor Mixing

Specs

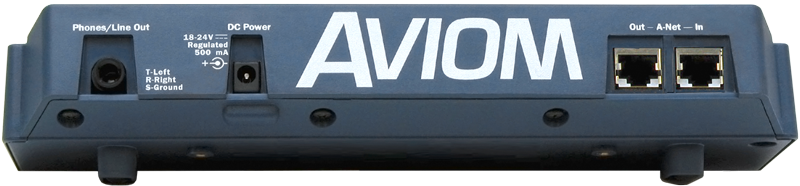

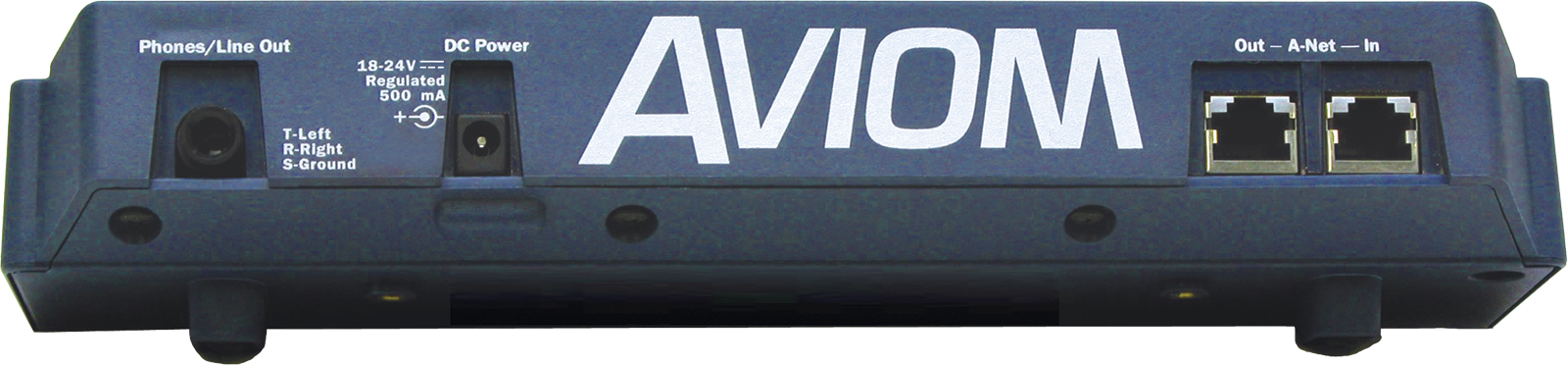

Audio Output	1/4-inch TRS stereo, headphone or line level
Line/Headphone TRS Output	Tip: Audio Left; Ring: Audio Right;Sleeve: Ground Auto-detects mono plugs
A-Net Input/Output	1 A-Net input, 1 A-Net output; Category 5 (RJ45 connector)
Digital to Analog Conversion Bit Depth	24 bit
Signal to Noise Ratio	(Referenced to 0dB) -103dB
Latency	<0.880 msec (measured from analog input to analog output)
Pro16 A-Net	uses unshielded Cat-5e UTP (or better) cable; maximum 500ft (150m) between devices
Tone Controls	Treble +/-12dB at 9kHz shelving
Tone Controls	Bass +/-12dB at 160Hz shelving
Maximum Levels (RMS)	Line/Headphone outs: 1.0 watt at 100 ohms
Impedance	Line/Headphone outs: 32 ohms
Power Supply Input Voltage Output Voltage Plug Size	External, DC, universal switching type 100-240 volts, 50/60Hz, 30VA 18-24 VDC, 0.5 amp 2 mm
Dimensions	10.75" (273 mm) wide x 5.6" (142.2 mm) deep; 2.25" (57.5 mm) high
Weight	3.4 lbs. (1.54 kg)
Options	MT-1 Mic Stand Mount (uses 6-32 1/4-inch screws)
	EB-1 Extension Bracket
	MT-X Expansion Box (requires MT-1)
