Product Details

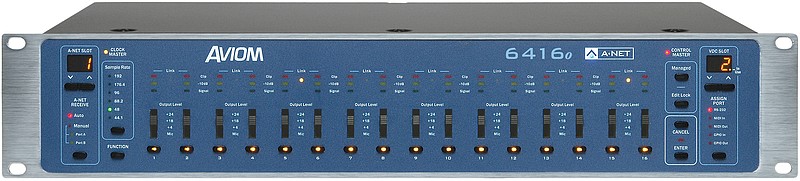

The 6416o v.2 Output Module is designed with increased output level flexibility to simplify connectivity with amplifiers, powered speaker systems, mixing consoles, and recording devices, and increase the flexibility of Aviom's high-fidelity digital audio networking solution. The 6416o v.2 can be used anywhere that analog outputs are required in a system: on stage or at front of house in a digital snake, in the studio, or even in the most complex audio networks, making it ideal for live sound reinforcement, broadcast, and other audio distribution applications. Adding a digital split to a system is as simple as connecting an additional 6416o v.2.
Four Output Level Options
The 6416o v.2 provides 16 balanced XLR mic- or line-level analog outputs from a Pro64® A-Net network. Each channel includes a four-position output level switch (+24dBu, +18dBu, +4dBu, and mic) and three-segment level metering. Alternate audio outputs are provided via DB25 multipin connectors on the rear panel.
Each 6416o v.2 can be configured to operate within a specified channel/slot range within the Pro64 network, making complex installations easy to configure and manage. Each output channel of a 6416o v.2 can be made active as needed.
The Pro64 A-Net network supports three ranges of variable sample rates: 44.1/48kHz±, 96kHz±, and 192kHz±. No matter the sample rate, all 16 output channels on the 6416o v.2 are available for use. All audio is streamed at 24-bit resolution with no data compression at any time.
In addition to its audio capabilities, the 6416o v.2 also includes the innovative Virtual Data Cables? for simultaneously distributing up to 14 channels of non-audio control data such as MIDI, RS-232, and GPIO to any device on the Pro64 network. Every Pro64 I/O module comes with its own set of VDC ports that can be individually configured.
The 6416o v.2 is fully compatible with all Pro64 devices, including the dual output level 6416o. Any combination of 6416o and 6416o v.2 modules can be used in a system as the needs of the application dictate.
Systems
48x16 Digital Snake
The Pro64 digital snake utilizes three 6416m Mic Input Modules on stage, a 6416i Input Module for returns from the console, and a combination of 6416o and 6416o v.2 Output Modules. The 6416o at front of house provides the option of mic or line-level analog signals to the console, while the four output levels selectable on the 6416o v.2 on stage provide increased flexibility for interfacing to other gear.
