Simplify management and control of your Pro64 Series digital audio network and unlock the flexibility of the Pro64 matrix.
Features
- View all active Pro64 network devices at a glance
- Name devices and organize them by location
- Edit channel-level settings
- Activate channels on any input device from a central location
- Control network mic preamps from a central location
- Allows naming of all channels
- Store, recall, and manage network scenes and device-level presets
NEW IN VERSION 2:
- Matrix allows crosspoint switching of inputs and outputs at every audio I/O device
- Support for AllFrame Multi-Modular I/O System devices
- Audio Slot Manager provides a simplified overview of audio patching and routing
- Auto Pad or Manual Pad option when using m-control™ with 6416Y2 cards and remote controllable preamps in the 6416m and AllFrame
Product Details
Aviom’s Pro64® Network Manager™ is a PC-based application that provides status monitoring and control of a Pro64 audio network from a central location.
The intuitive, easy-to-use graphical interface provides a host of global and device-specific information to the user, allowing simple management of even complex audio networks. Individual device settings can be changed without manual front panel adjustments, adding to the simplicity and flexibility of installed Pro64 audio networks.
Powerful, Streamlined Management

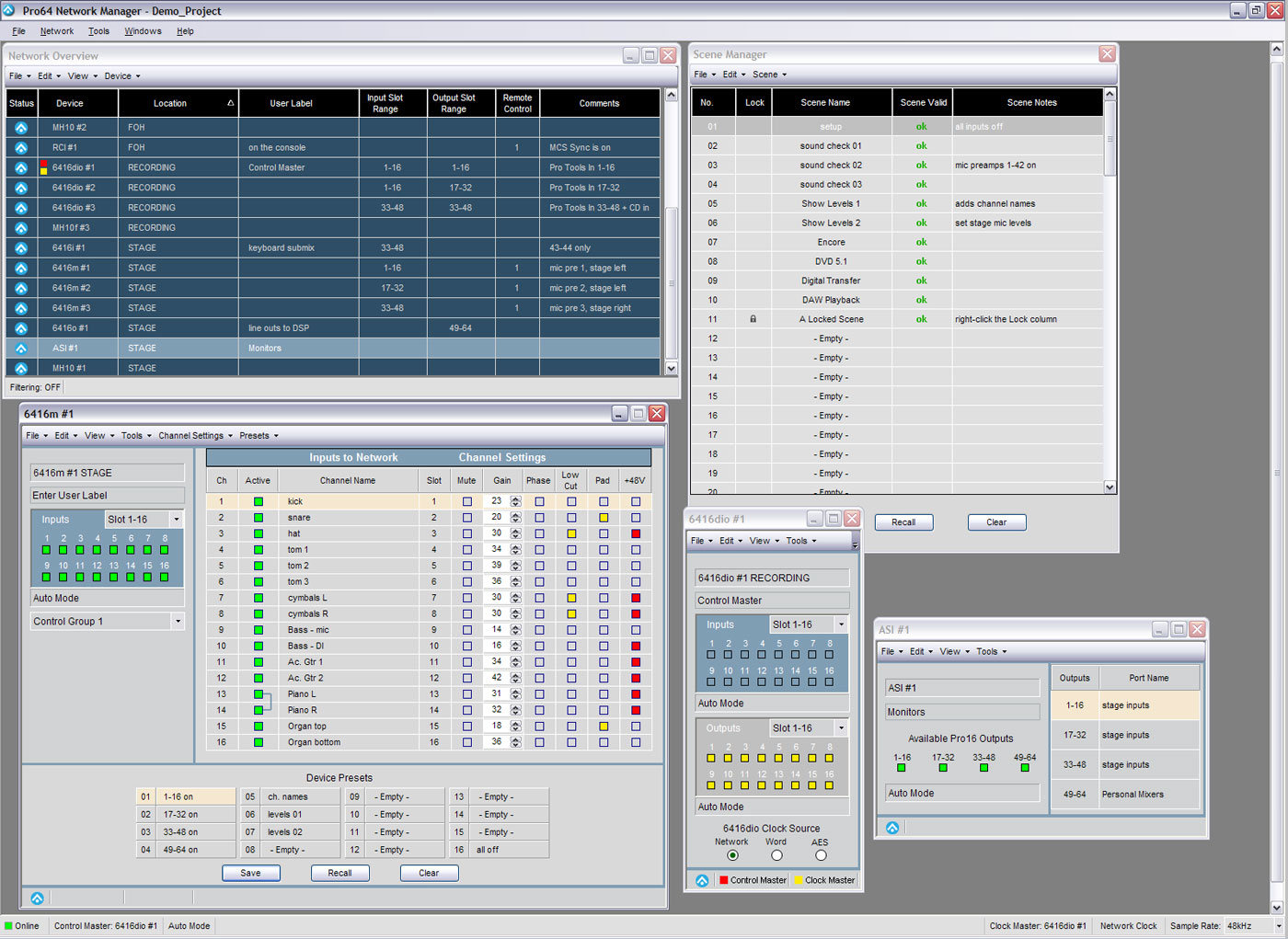

Network Manager's Network Overview window shows the entire network at a glance, displaying channel ranges for all I/O devices and providing tools for sorting and naming devices and locations. Network-level settings, such as clock source and sample rate, can be easily monitored. Through this simple user interface, Pro64 Network Manager streamlines the management of both individual devices and the system as a whole.
Device Control

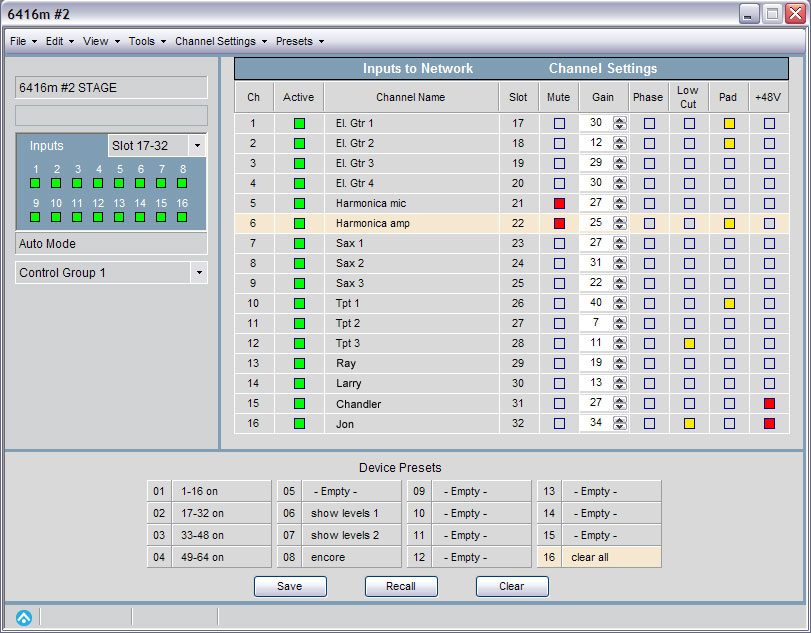

Settings for individual Pro64 devices are accessed through the Device Window, each of which is tailored to the features of the device type. Setup of more complex products, such as the 6416m Mic Input Module, is made even more efficient with the simple graphic view of the preamp's channel strips and presets. Pro64 Network Manager helps users track and allocate network resources more efficiently and speeds reconfiguration of individual devices and entire systems.
Crosspoint Switching at Every I/O Device
New in Network Manager 2 is the crosspoint switch at every audio I/O device and the Audio Slot Manager window. Any hardware channel can be mapped instantly to any A-Net Slot in the network, either by selecting from a simple drop-down or typing in the assignmnent. The Audio Slot Manager allows users to see the entire network stream and to monitor and review all audio resources assigned to a given network slot.
Audio settings, network assignments, channel names, and user labels can all be stored in a combination of network-level scenes and device-level presets.
