AN-16SBR   System Bridge
AN-16SBR System Bridge    AN-16SBR System Bridge
Features   |   Product Details   |   Specs
AN-16SBR: At-a-Glance

Two identical 1U rack-mount modules, each with:

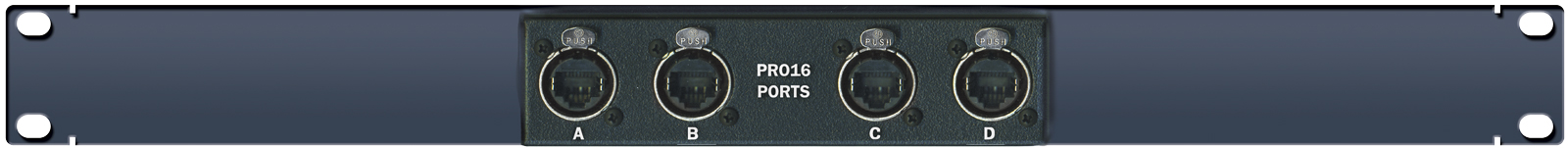

  • Four Neutrik EtherCon connectors, labeled A, B, C, and D (16 channels each)

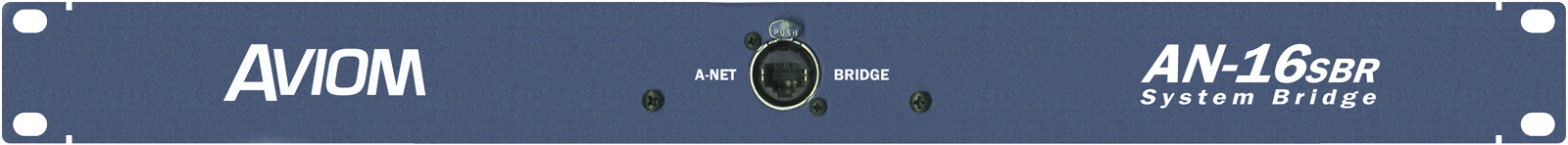

  • One Neutrik EtherCon connector for Bridge output (up to 64 channels)
  • Requires no power supply
  • Multiple AN-16SBR units can be used to create complex systems

The AN-16SBR System Bridge combines up to four Pro16 A-Net streams and allows them to be transported over a single Cat-5e cable, simplifying the long cable runs typically required in digital snake and audio distribution systems.

The System Bridge is sold as a pair; one AN-16SBR is used at each end of every 48- or 64-channel run between the Pro16 input and output modules.
