The 2U A-16D Pro is a great addition to any monitor mixing system. It simplifies setup by eliminating the need to connect a power supply to each Personal Mixer. For touring applications, the A-16D Pro can be placed in a rack on stage to make system setup as simple as plugging in a Cat-5 cable. In studio applications or permanent installs, connect the outputs from the A-16D Pro to wall jacks or floor pockets, making monitor system wiring almost invisible.

The A-16D Pro provides isolated (floating ground) DC power through the eight A-Net Outs; the ninth output is an unpowered A-Net Thru connector, designed for distributing a copy of the A-Net signal to a second A-Net Distributor or remote location. Inside the A-16D Pro is Aviom's unique power sub-system design, which requires no external power supplies and which virtually eliminates the possibility of introducing hum or ground loops. The A-16D Pro can also be used as a central hub in an audio distribution system or snake, providing outputs to multiple locations or redundant outputs to a single location.

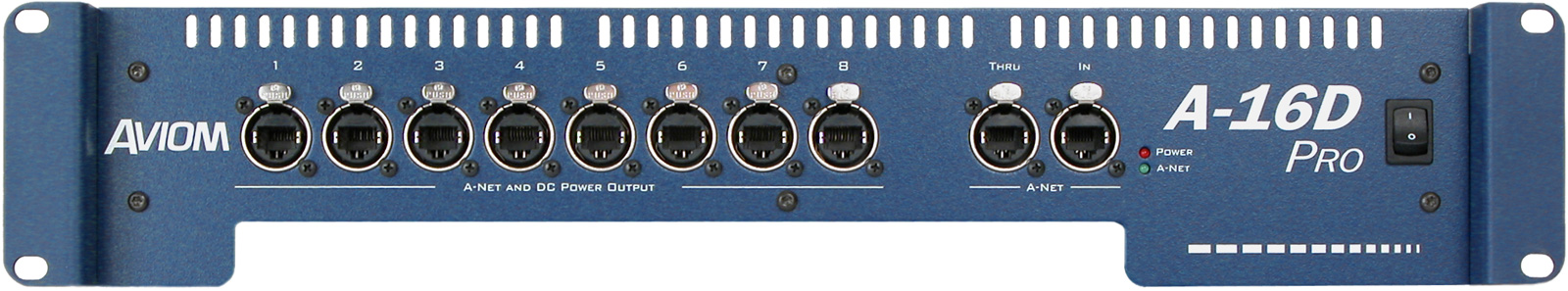

All connections on the A-16D Pro are on the front panel. A pass-through cable cutout is provided for flexible cable routing. As with all Pro16 Series products, Cat-5e cable runs from the A-16D Pro to each connected Personal Mixer can be up to 500ft/150m long.

The A-16D Pro can be connected to the Pro16 A-Net outputs on the ASI A-Net Systems Interface to enable Pro64 digital snake and audio network systems to be interfaced with Pro16 monitoring systems.
