The A-16R is a single-rack-space stereo digital mixer that can be added to any Pro16^® network. Its versatile feature set makes it the ideal choice for a variety of applications on stage or in permanent installations.

The A-16R gives each performer control over channel volume, grouping, pan, stereo spread, and master volume and tone. Users can save and recall up to sixteen custom mixes as presets in their A-16R Personal Mixer.

Connectivity Options

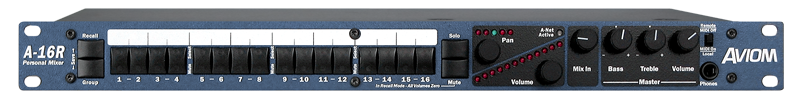

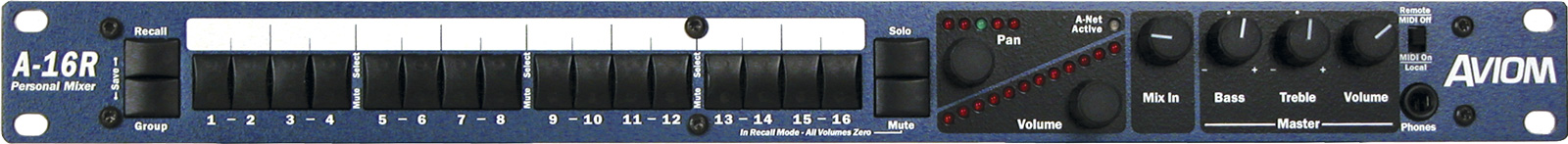

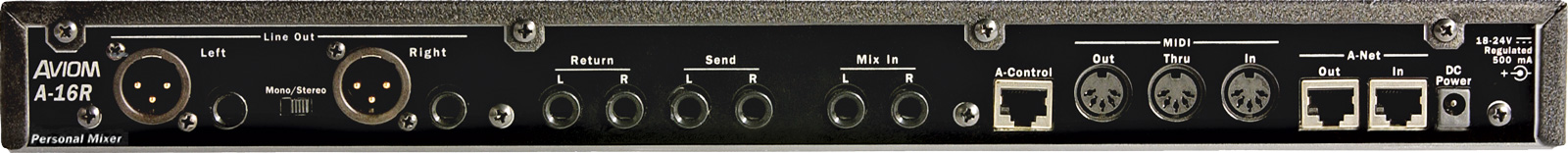

For performers using wireless in-ear systems and powered floor wedges, the A-16R couples the mixing features of the A-16II Personal Mixer with additional connectivity options. Balanced outputs on the rear panel (with both XLR and 1/4" TRS jacks) plus stereo balanced TRS insert points simplify audio connections to external processors or amps. A front-panel headphone jack is also provided.

Stereo Mix In jacks on the rear panel allow a local analog audio source, such as a click track or other program material from an iPod, laptop or DAW, to be added to the user's mix. A front-panel Mix In level control is also provided.

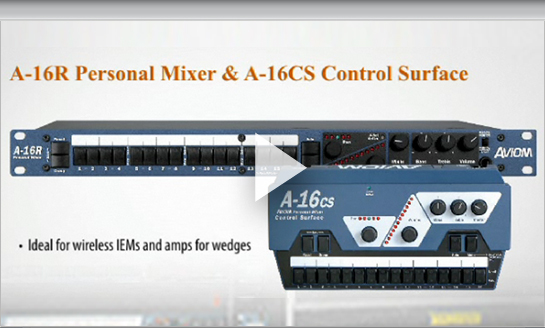

The A-16R can be remote controlled from up to 200 feet (61m) away by adding the A-16CS Control Surface, allowing the A-16R to be rack mounted in an off-stage location with wireless in-ear monitor gear, amplifiers, etc. The A-16R can also be controlled via MIDI as well as RS-232 using approved third-party control systems.

Compatibility

All Pro16 Personal Mixers, including the A-16II, A-16R, and A360, can be used in any combination when creating a personal mixing system.

Adding an ASI A-Net Systems Interface to a Pro64 network allows a Personal Mixer to output any 16 channels from a Pro64 digital snake or audio network.
