- 1 AN-16/i-M Mic Input Module
- 1 AN-16/i v.2 Input Module
- 2 AN-16/o v.4 Output Modules

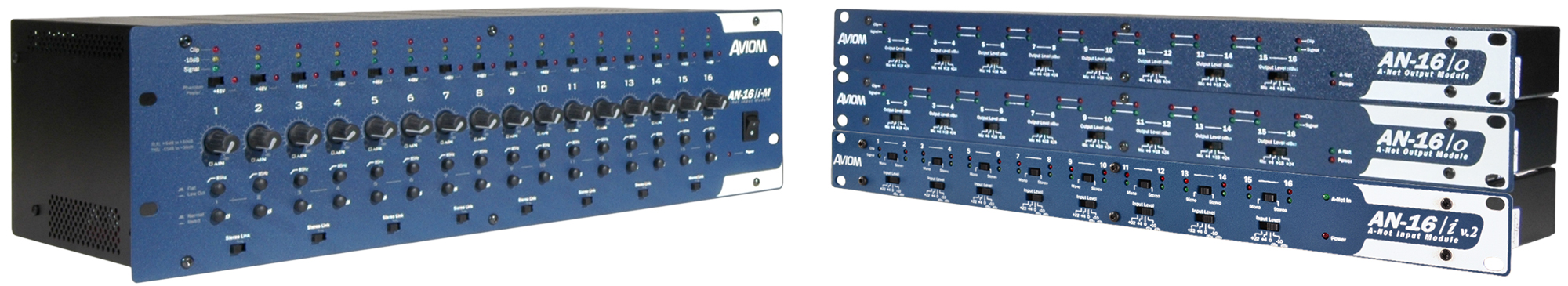

The DS16 is a 16x16 digital snake system ideal for smaller ensembles. It has 16 mic/line inputs and 16 line-level returns. All the gear fits in just 6U of rack space.
The DS16 system uses one AN-16/i-M Mic Input Module on the stage side that can accept up to 16 mic/line inputs. At front of house, those signals are output to the console via an AN-16/o v.4 Output Module. Returns are handled by an AN-16/i v.2 Input Module at FOH and a second AN-16/o v.4 on stage. All 32 channels are transmitted over a single Cat-5e cable.
Each input channel on the AN-16/i-M contains a three-segment level meter, a continuously variable gain knob, a phase reverse switch, 48-volt phantom power, and a rumble filter with an 85Hz rolloff. Built-in Thru connections act as a digital splitter to allow the mic input signals to be patched to other devices.
The 16 balanced outputs on the AN-16/o v.4 are provided via DB25 multipin connectors. The analog outputs can be set (per channel pair) to +24dBu, +18dBu, +4dBu, or mic level.
The DS16 is a simple digital snake that can easily be integrated with nearly any existing audio system. Because all Aviom solutions are modular, the system can be expanded at any time by connecting additional I/O modules.
DS16 Technical Specifications
SpecsAN-16/i-M Mic Input Module |
|
|---|---|
| Audio Inputs | 16, balanced mic- or line-level, XLR combo connector |
| XLR Input (mic/line) |
Pin 1: Ground; Pin 2: Audio +; Pin 3: Audio - |
| TRS Line Inputs, & Send/Return |
Tip: Audio +; Ring: Audio -; Sleeve: Ground |
| Audio Thru | XLR; Pin 1: Ground; Pin 2: Audio +; Pin 3: Audio - Direct coupled passive throughput |
| Insert Send | Impedance balanced; Nominal level: 0dBu; Peak Level (A/D clip point): +14dBu |
| The Insert Send connector is a line output in the signal path post gain, post filter, and post phase controls. | |
| Insert Return | TRS balanced; Nominal level: 0dBu; Peak Level (A/D clip point): +14dBu |
| The Insert Return connector is a line input to the signal path that is pre A/D conversion. | |
| Analog to Digital Conversion | 48kHz sample rate, 24 bit |
| Operating Level | +4dBu |
| Frequency Response | 4Hz-22kHz |
| A-Net Output | One Category 5 (RJ45 connector) |
| A-Net Expansion | One Category 5 (RJ45 connector) |
| Gain Range | Mic: +6dB to +60dB; Line: -15dB to +36dB |
| Channel LED Indicators | Signal Present and Clip, per channel |
| Line Inputs | Impedance: 48k ohms |
| Metering | LEDs; green: Signal Present, red: Clip; per channel |
| Stereo Operation | Stereo Link, per channel pair; Two-position switch (Normal, Link) |
| Maximum Input Level | Mic: +14dBu; Line: +28dBu |
| Input Impedance | Mic: 2.4k ohms; Line (TRS): 33k ohms; Insert Return: 39k ohms |
| A/D Freq. Response | -0.1dB @ 20kHz (-0.4dB @ 20.0kHz, measured from Mic or Line in) -3dB @ 1.5Hz (-3dB @ 2.0Hz, measured from Mic or Line in) |
| THD +N | < 0.003% |
| Crosstalk | -90dB |
| Bit Error Rate (BER) | 10(-12) |
| Signal to Noise (unweighted) | A/D: -105dB Reference = +14dBu (A/D clip point)
|
| EIN (Equivalent Input Noise) | -128dBu (Rs = 150 ohms, 20kHz BW, Gain = +60dB) |
| CMRR (Common Mode Rejection Ratio) | 80dB @ 120Hz (Gain = +60dB) |
| Low Cut Filter | -3dB @ 85Hz, -18 dB per octave |
| Phantom Power | +48 volts, per channel, switch with LED |
| Digital Outputs | A-Net: 2 (Main and Aux); A-Net Expansion: 1 |
| Pro16 A-Net |
A-Net Expansion combines two A-Net streams (32 channels
of audio) onto one Cat-5e cable |
| Latency | <0.880 msec (measured from analog input to analog output) |
| Power Supply | Internal, universal switching type; IEC jack |
| Voltage | 100-240VAC, 50-60Hz, 60W; Fuse: 250VAC, F4AL |
| Dimensions | 19 x 9.25 in. (482.6 x 234.95mm); 3U high |
| Weight | 12 pounds (5.44 kg) |
AN-16/i v.2 Input Module |
|
|---|---|
| Audio Inputs | 16, balanced line-level, 1/4-inch TRS connector |
| Inputs | Tip: Audio +; Ring: Audio -; Sleeve: Ground |
| TRS Thru | Impedance matched output |
| Analog to Digital Conversion | 48kHz sample rate, 24 bit |
| Frequency Response | 4Hz-22kHz |
| A- Net In | One Category 5 (RJ45 connector) Four-position slot range selector switch for use with Pro16e A-Net |
| A-Net Out | One Category 5 (RJ45 connector) Supports Pro16 and Pro16e |
| Gain Settings | Four-position switch, -10dBv, 0dBu, +4dBu, and +22dBu |
| Channel LED Indicators | Signal Present and Clip, per channel |
| Line Inputs | Impedance: 48k ohms |
| Metering | LEDs; green: Signal Present, red: Clip; per channel |
| Stereo Operation | Stereo Link, per channel pair; Two-position switch (Normal, Link) |
| Maximum Input Level | +22dBu |
| Input Impedance | 17.8k ohm |
| Freq. Response | 4Hz-22kHz +0.2dB/-3dB |
| THD +N | < 0.003% |
| Crosstalk | -90dB |
| Bit Error Rate (BER) | 10(-12) |
| Signal to Noise (unweighted) | 90dB typical, A/D to D/A Measured from AN-16/i to AN-16/o Output Module |
| Digital Outputs | A-Net: 1; RJ45 connector |
| A-Net Pro16 and Pro16e | Use unshielded Cat-5e UTP (or better) cable |
| Latency | <0.880 msec (measured from analog input to analog output) |
| Power Supply Input Voltage Output Voltage Plug Size |
External, DC, universal switching type 100-240 volts, 50/60Hz, 30VA 18-24 VDC, 0.5 amp 2 mm |
| Power | 18-24 VDC, 500mA |
| Dimensions | 19" (482.6 mm) wide x 5.75" (146 mm) deep; 1U high |
| Weight | 6.8 lb (3.08 kg) |
| Options | AN-16SBR System Bridge; used to combine up to four A-Net streams for transmission over one Cat-5e cable |
AN-16/o v.4 Output Module |
|
|---|---|
| Audio Outputs | 16 channels, balanced |
| Outputs | DB25 multipin connectors (2); Tascam® analog audio pinout |
| Impedance balanced output for mic, +4dBu, and +18dBu; differential output for +24dBu | |
| D/A Conversion | 48kHz sample rate, 24 bit |
| Frequency Response | 4Hz-22kHz |
| A-Net Input/Output | one EtherCon Category 5 (RJ45 connector) |
| A-Net Expansion | one EtherCon Category 5 (RJ45 connector) |
| Output Level Settings | Four-position switch, per channel pair; +24dBu, +18dBu, +4dBu, and Mic |
| Channel LED Indicators | Signal Present and Clip, per channel |
| Metering | LEDs; green: Signal Present; red: Clip; per channel |
| Maximum Output Level | +24dBu |
| Output Impedance | 226 ohms (+18dBu, +24dBu); 100 ohms (+4dBu and mic) |
| Freq. Response | 4Hz-22kHz +0.2dB/-3dB |
| THD +N | < 0.004% |
| Crosstalk | -90dB |
| Bit Error Rate (BER) | 10(-12) |
| Signal to Noise (unweighted) | 92dB typical, A/D to D/A Measured from AN-16/i to AN-16/o v.4 Output Module |
| Digital Connections | A-Net In: 1; A-Net Out: 1; A-Net Expansion: 1; Neutrik EtherCon connectors |
| A-Net Pro16 | A-Net Expansion combines two A-Net streams (32 channels of audio) onto one Cat-5e cable; |
| Latency | <0.620 msec (measured from analog input to analog output) |
| Power Supply Input Voltage Output Voltage Plug Size |
External, DC, universal switching type 100-240 volts, 50/60Hz, 30VA 24 VDC, 0.5 amp 2 mm |
| Power | 24 VDC, 500mA |
| Dimensions | 19" (482.6 mm) wide x 5.75" (146 mm) deep; 1U high |
| Weight | 6.8 lbs. (3.08 kg) |
| Options | AN-16SBR System Bridge; used to combine up to four A-Net streams for transmission over one Cat-5e cable |
