MixSP Standalone Personal Mixing System

Features | Product Details | Specs

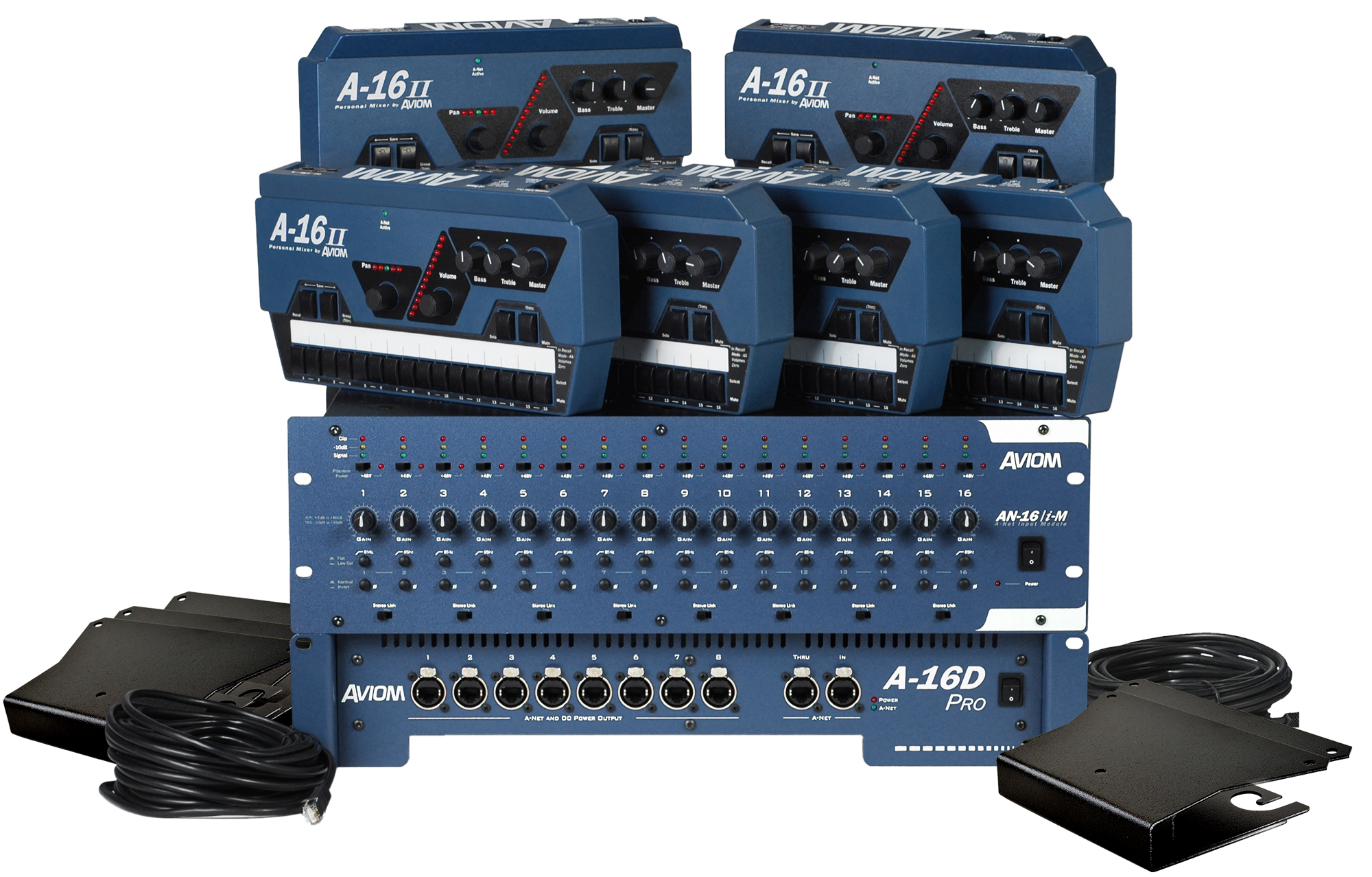

MixSP: At-a-Glance

1 AN-16/i-M Mic Input Module
1 A-16D Pro A-Net Distributor
6 A-16II Personal Mixers
6 MT-1a Mic Stand Mounts
7 L-25 Cat-5e Cables

The MixSP Standalone Personal Mixing System is the perfect plug-n-play 6-mixer monitor system for everything from silent rehearsals to live gigs. It allows you to connect mics and/or line-level signals directly to the Pro16 input module without need for a console. The built-in XLR passive split on the AN-16/i-M Mic Input Module can be used to connect the input signals to a PA system or mixing console and retain independent control over the monitor content. It's the perfect solution for performers who travel; no more worrying about the monitor system at the gig!

Once the input signals are connected to the AN-16/i-M Mic Input Module, connect a Cat-5e cable from the AN-16/i-M to the A-16D Pro A-Net Distributor which copies and splits the digital signal while at the same time adding DC power to each of its eight outputs.

Connecting a Cat-5e cable from the A-16D Pro to each A-16II Personal Mixer is all that is necessary to complete the setup; the mixers get their power over the same cable that delivers the 16-channel digital signal. Plug headphones, ear buds, or a wireless in-ear monitoring system into the Personal Mixer and you're ready to start creating custom mixes.

MixSP Technical Specifications

AN-16/i-M Mic Input Module
Audio Inputs	16, balanced mic- or line-level, XLR combo connector
XLR Input (mic/line)	Pin 1: Ground; Pin 2: Audio +; Pin 3: Audio -
TRS Line Inputs, & Send/Return	Tip: Audio +; Ring: Audio -; Sleeve: Ground
Audio Thru	XLR; Pin 1: Ground; Pin 2: Audio +; Pin 3: Audio - Direct coupled passive throughput
Insert Send	Impedance balanced; Nominal level: 0dBu; Peak Level (A/D clip point): +14dBu
The Insert Send connector is a line output in the signal path post gain, post filter, and post phase controls.
Insert Return	TRS balanced; Nominal level: 0dBu; Peak Level (A/D clip point): +14dBu
The Insert Return connector is a line input to the signal path that is pre A/D conversion.
Analog to Digital Conversion	48kHz sample rate, 24 bit
Operating Level	+4dBu
Frequency Response	4Hz-22kHz
A-Net Output	One Category 5 (RJ45 connector)
A-Net Expansion	One Category 5 (RJ45 connector)
Gain Range	Mic: +6dB to +60dB; Line: -15dB to +36dB
Channel LED Indicators	Signal Present and Clip, per channel
Line Inputs	Impedance: 48k ohms
Metering	LEDs; green: Signal Present, red: Clip; per channel
Stereo Operation	Stereo Link, per channel pair; Two-position switch (Normal, Link)
Maximum Input Level	Mic: +14dBu; Line: +28dBu
Input Impedance	Mic: 2.4k ohms; Line (TRS): 33k ohms; Insert Return: 39k ohms
A/D Freq. Response	-0.1dB @ 20kHz (-0.4dB @ 20.0kHz, measured from Mic or Line in) -3dB @ 1.5Hz (-3dB @ 2.0Hz, measured from Mic or Line in)
THD +N	< 0.003%
Crosstalk	-90dB
Bit Error Rate (BER)	10(-12)
Signal to Noise (unweighted)	A/D: -105dB Reference = +14dBu (A/D clip point) Send jack: -113dB (Gain = minimum)
EIN (Equivalent Input Noise)	-128dBu (Rs = 150 ohms, 20kHz BW, Gain = +60dB)
CMRR (Common Mode Rejection Ratio)	80dB @ 120Hz (Gain = +60dB)
Low Cut Filter	-3dB @ 85Hz, -18 dB per octave
Phantom Power	+48 volts, per channel, switch with LED
Digital Outputs	A-Net: 2 (Main and Aux); A-Net Expansion: 1
Pro16 A-Net	A-Net Expansion combines two A-Net streams (32 channels of audio) onto one Cat-5e cable uses unshielded Cat-5e UTP (or better) cable
Latency	<0.880 msec (measured from analog input to analog output)
Power Supply	Internal, universal switching type; IEC jack
Voltage	100-240VAC, 50-60Hz, 60W; Fuse: 250VAC, F4AL
Dimensions	19 x 9.25 in. (482.6 x 234.95mm); 3U high
Weight	12 pounds (5.44 kg)

A-16II Personal Mixer
Audio Output	1/4-inch TRS stereo, headphone or line level
Line/Headphone TRS Output	Tip: Audio Left; Ring: Audio Right;Sleeve: Ground Auto-detects mono plugs
A-Net Input/Output	1 A-Net input, 1 A-Net output; Category 5 (RJ45 connector)
Digital to Analog Conversion Bit Depth	24 bit
Signal to Noise Ratio	(Referenced to 0dB) -103dB
Latency	<0.880 msec (measured from analog input to analog output)
Pro16 A-Net	Uses unshielded Cat-5e UTP (or better) cable; maximum 500ft (150m) between devices
Tone Controls	Treble +/-12dB at 9kHz shelving
Tone Controls	Bass +/-12dB at 160Hz shelving
Maximum Levels (RMS)	Line/Headphone outs: 1.0 watt at 100 ohms
Impedance	Line/Headphone outs: 32 ohms
Power Supply Input Voltage Output Voltage Plug Size	External, DC, universal switching type 100-240 volts, 50/60Hz, 30VA 18-24 VDC, 0.5 amp 2 mm
Dimensions	10.75" (273 mm) wide x 5.6" (142.2 mm) deep; 2.25" (57.5 mm) high
Weight	3.4 lbs. (1.54 kg)
Options	MT-1 or MT-1a Mic Stand Mount
	EB-1 Extension Bracket
	MT-X Expansion Box (requires MT-1)
	PS-120 Power Supply

A-16D Pro A-Net Distributor
A-Net Input	One EtherCon RJ45 connector
A-Net Thru	One EtherCon RJ45 connector, unpowered
A-Net Outputs	8 EtherCon RJ45 connectors, powered (DC)
LEDs	Power On; A-Net Active
Pro16 A-Net	16 channels of digital audio over Cat-5e cable
Pro16 A-Net	Uses unshielded Cat-5e UTP (or better) cable
Power Supply	Internal, universal switching type
Cooling	One ultra-quiet fan
Input Voltage	100-240VAC, 50-60Hz, 60W
Output Voltage for Personal Mixers	18-24 VDC, 0.5 amp
Output Voltage for Personal Mixers	Transmitted over the Cat-5e cable
Dimensions	19" (482.6 mm) wide x 14.25" (362 mm) deep; 2U, 3.5" (88.9 mm) high
Weight	12.0 lbs (5.44 kg)

MT-1a Mic Stand Mount
Boxed Weight	1 lb
Boxed Dimensions	7"w x 5"d x 3"h
Dimensions	6.25" wide at front x 4.5" wide at rear x 3" high
Connections:	Attaches with three screws to bottom of an A360 A-16II, or A-16CS
Connectors:	Size: 6-32, 1/4-inch long screws

Data Sheet
