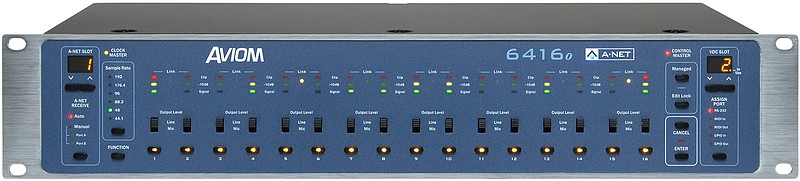

The 6416o provides 16 balanced mic- or line-level analog outputs from a Pro64® audio network.
6416o Output Module
Click the image to close. | Click and drag to move. | Click here to print this image. | Click here for hi-res product photos.
6416o Output Module
6416o Output Module
  • Features
  • Details
  • Specs
  • Systems
  • Connections
  • Multimedia
  • Resources
  • 16 balanced mic- or line-level analog outputs (XLR)
  • DB25 alternate audio outputs
  • Virtual Data Cable connectivity for GPIO, MIDI, and RS-232
  • Variable sample rates: 44.1kHz± to 192kHz±
  • 24-bit D/A converters
  • Internal universal power supply; IEC power connector

The 6416o Output Module provides 16 balanced mic- or line-level analog outputs from a Pro64 A-Net network. Each channel includes a two-position output level switch (mic or line) and three-segment level metering. Alternate audio outputs are provided via DB25 multipin connectors on the rear panel.

Each 6416o can be configured to operate within a specified channel/slot range within the Pro64 network, making complex installations easy to configure and manage. Each output channel of a 6416o can be made active as needed.

Sample Rates From 44.1 to 192kHz

The Pro64 A-Net network supports three ranges of variable sample rates: 44.1/48kHz±, 96kHz±, and 192kHz±. No matter the sample rate, all 16 output channels on the 6416o are available for use. All audio is streamed at 24-bit resolution with no data compression at any time.

In addition to its audio capabilities, the 6416o also includes the innovative Virtual Data Cables for simultaneously distributing up to 14 channels of non-audio control data such as MIDI, RS-232, and GPIO to any device on the Pro64 network. Every Pro64 I/O module comes with its own set of VDC ports that can be individually configured.

The 6416o can be used anywhere analog outputs are required: on stage or FOH in a digital snake, in the studio, for a recording split, or in even the most complex audio networks. Adding a digital split to a system is as simple as connecting an additional 6416o.

Channels: 16 outputs Mic or line level
XLR Outputs: Pin 1: Shield; Pin 2: Hot; Pin 3: Cold
Impedance balanced; Signal on hot only
Alternate Audio Outputs: DB25 multipin; audio pinout
Output Impedance: 91 Ohms
Output Levels: +4dBu, -17dBu 2-position switch
Sample Rates: 1x: 39.7-52kHz;
2x: 79.4-104kHz;
4x: 158.8-208kHz
24-bit resolution
Frequency Response: -3dB: 2Hz and 23kHz
±0.5dB: 3Hz-22kHz (at 1x sample rate)
THD+N: < .002% at -10dBFS
Signal to Noise: D/A: -111dB (unweighted)
Crosstalk: <100dB at 1kHz
Maximum Ambient Temperature: 50°c
Virtual Data Cables: MIDI In, MIDI Out
5-pin DIN
RS-232
DB9 connector; DIP switch configuration
GPIO
In (x4), Out (x4); terminal block connectors;
DIP switch configuration; TTL or isolated
A-Net: 2 EtherCon® RJ45 connectors
A-Net Cable Length: 400 feet (120 meters) between devices
Latency: Analog input to analog output: <800µs
Power Supply: 100-240VAC 50-60Hz, 24W
Internal switching type; IEC connector
Dimensions: 2U: 19"w x 8"d x 3.5"h (482.6 x 203 x 88 mm)
Weight: 9 pounds (4.1 kg)
