Partner Products

AMX "InConcert" Device Discovery Partner

AMX Corporation is one of the world’s two top manufacturers of control systems and touch panels in the systems integration market. AMX Device Discovery is a technology integrated into manufacturers' products to make programming easy and operation with an AMX control system effortless. As a Device Discovery Partner, Aviom is helping to improve the way ProAV installations are programmed, managed and operated.

Learn more at www.amxcorp.com

Crestron Certified Integrated Partner

Crestron Electronics is one of the world’s leading manufacturers of control systems and touch panels for the systems integration market. The Crestron Certified Integrated Partner program is designed to allow partner manufacturer's products to operate seamlessly in a Crestron systems environment. Members of this program include a broad and well-respected coalition of technology manufacturers from many diverse markets.

Learn more at www.crestron.com

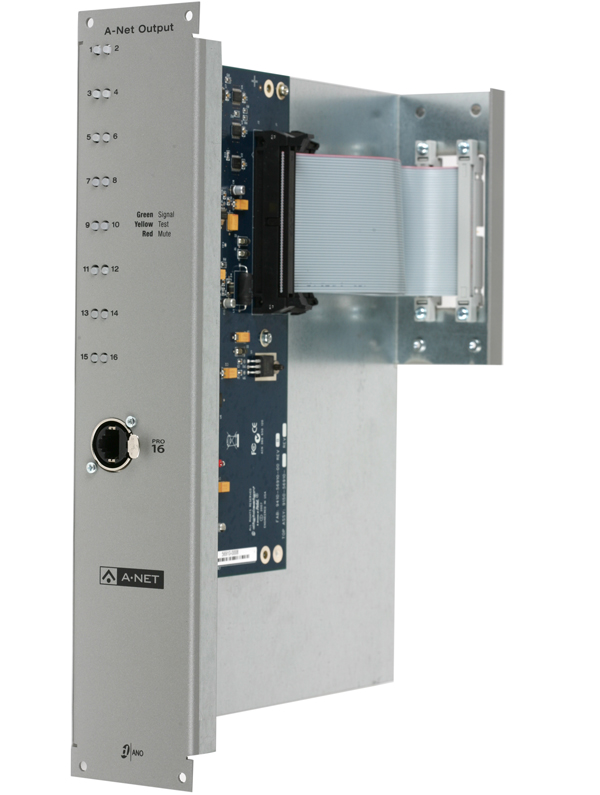

ANO A-Net Output Card

The Digidesign® ANO A-Net® Output Card is an option for the VENUE Stage Rack that enables you to integrate Aviom® Pro16™ Series personal mixers and devices with any VENUE system, providing a simple and cost-effective artist-driven monitoring solution.

The card transmits up to 16 discrete channels of high quality, 24-bit, 48kHz audio from nearly any signal point on a VENUE system to Aviom Pro16 Series receiving devices.

Learn more at www.digidesign.com

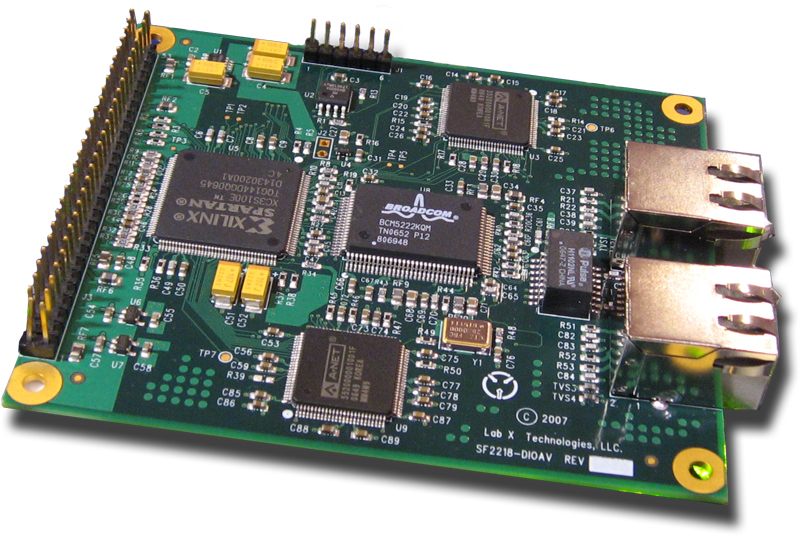

Innovason DioAV A-Net card

This daughter card installs on one of the two locations available on the Innovason DSP card, and outputs two independent Pro16 A-Net streams of 16 channels each.

With its two A-Net outputs, the DioAV can be used to feed two separate monitor mixing systems, or one monitor mix and 16 channels of digital snake, or a 32 channel digital snake.

Learn more at www.innovason.com

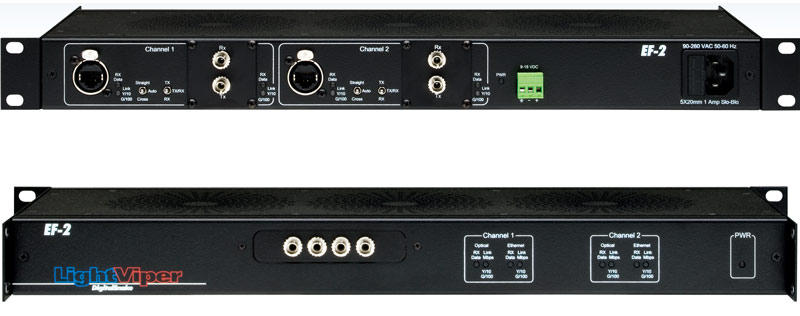

LightViper EF-2 Physical Layer Ethernet Converter

Designed in collaboration with Aviom, the LightViper EF-2 converts all Physical Layer Ethernet signals from Cat-5 to fiber.

The EF-2 supports Pro16 A-Net systems up to 16x16 and 32x0 and allows distance between devices to be extended up to 2 km.

Learn more at www.lightviper.com

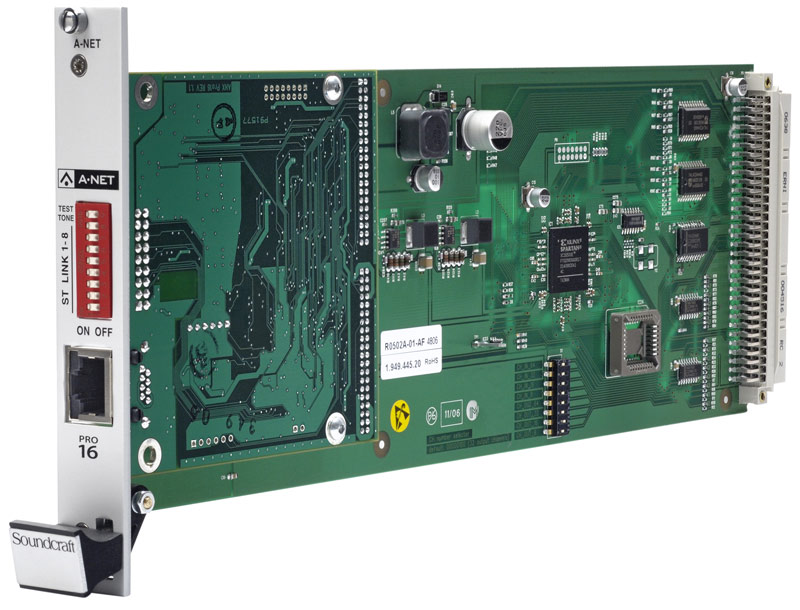

Soundcraft A-Net 16V card

With A-Net connectivity built in, the A-Net 16V card from Soundcraft provides a direct digital interface between the Soundcraft Vi6™ and Vi4™ digital consoles to Aviom Pro16 Series devices such as the A-16II and A-16R Personal Mixers.

The Soundcraft A-Net 16V card can be installed or retrofitted to any Soundcraft Vi series console rack, and outputs are assigned directly from the Vistonics™ II control screens on the console.

Learn more at www.soundcraft.com

Yamaha

Aviom offers two A-Net cards designed for Yamaha’s mini-YGDAI card slot, found in a host of industry leading digital devices such as the PM5D, DM2000, LS9, M7CL, and DME64.

The Aviom16/o-Y1 Pro16 A-Net card provides a 16-channel A-Net output and is designed for direct digital connectivity to a Aviom monitor system or snake return lines.

The 6416Y2 Pro64 A-Net card is a bidirectional interface supporting 44.1/48kHz and 88.2/96kHz operation. The 6416Y2 can be used for a range of applications, from an Aviom monitor system to a digital snake to tie lines between multiple consoles. Aviom’s MY cards were designed in consultation with Yamaha.

Learn more at www.yamaha.com/ca
