SB4 System Bridge
SB4 System Bridge

Features

  • Combines up to 4 synchonous A-Net streams from digital consoles

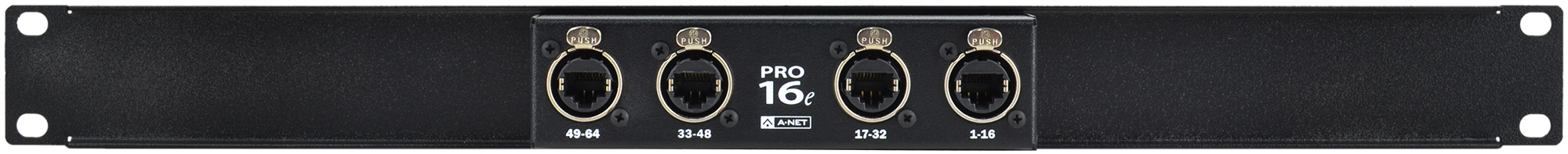

  • Rear Panel: Four EtherCon®-style connectors (16 channels each)

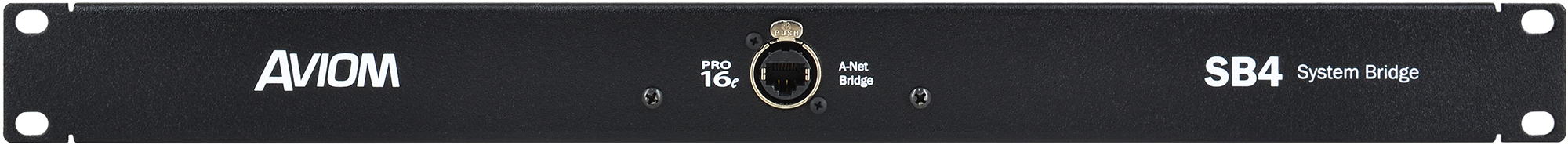

  • Front Panel: One EtherCon-style connector for A-Net Bridge output (up to 64 channels)
  • Requires no power supply
  • Multiple units can be used to create digital snake systems

Used in conjunction with the D800 or D800-Dante A-Net Distributor, the SB4 System Bridge combines up to four synchronous Pro16 A-Net streams to create a Pro16e data stream for use with A640, A360, and A320 Personal Mixers.

The SB4 can also be used in pairs to combine up to four Pro16 A-Net streams and allow them to be transported over a single Cat-5e cable, simplifying the long cable runs typically required in digital snake and audio distribution systems.

Product Details

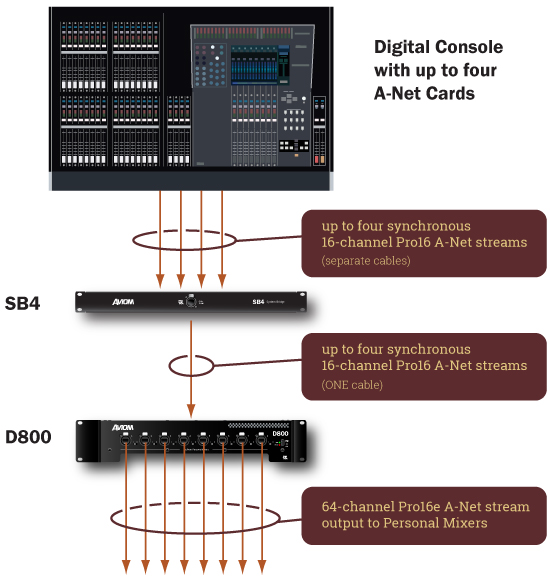

The SB4 System Bridge can be used to combine up to four Pro16® or Pro16e® A-Net® streams onto a single Cat-5 cable. For personal mixing systems, the SB4 allows digital console users to combine up to four synchronous A-Net streams and send that data to a D800 or D800-Dante A-Net Distributor for use with A640, A360, and A320 Personal Mixers.

For digital snake applications, one SB4 System Bridge is used at each end of a main run to either combine or separate up to four individual 16-channel A-Net streams. A single Cat-5e cable connects between the A-Net Bridge ports on the front panel of each SB4, carrying up to 64 channels on a single cable. This simplifies the setup and transport of high channel count digital snakes.

The SB4 supports the following digital snake configurations: 64x0, 48X16, 32x32 or smaller. All Cat-5e connections feature heavy-duty locking EtherCon-style connectors.

SB4 Technical Specifications

A-Net Input/Output Four EtherCon RJ45 Connectors
A-Net Bridge One EtherCon RJ45 Connector
Dimensions 1U high x 19" (482.6mm) wide x 1.25" (31.75mm) deep
 Weight 1.0 lb (.45 kg)
