Mix320-D  Personal Mixing System
 Mix320-D  Personal Mixing System

Features

  • (1)   D400-Dante A-Net Distributor
  • (6)   A320 Personal Mixers
  • (6)   MT-1a Mic Stand Mounts
  • (7)   Cat-5e cables
  • (6)   MEE Audio M6 Pro IEMs
            (optional)

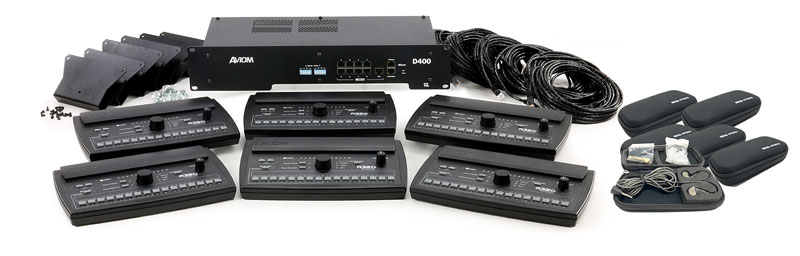

The Mix320-D Personal Mixing System has been designed specifically for use with Dante™ enabled mixing consoles and networks. It includes everything you need to create a personal mixing system for six performers.

The A320 Personal Mixers get their digital data and power over the same cable, so all you need to do is connect a Cat-5 cable and you're ready to start using the system.

A complete monitoring system in a box, ready to use!
The Mix320-A Personal Mixing System is available in two versions. The standard version is great if you already have in-ear monitors and /or headphones. If you're new to personal mixing and need IEMs, there is an enhanced version of the kit with six MEE Audio M6 Pro in-ear monitors included. These single-driver IEMs include a 72-inch cable, an assortment of ear tips, and a case.

Product Details

The Mix320-D Personal Mixing System makes it easy to add Aviom monitoring to a Dante-enabled mixing console or audio network. No analog input module or console card is required; inputs get patched directly from your Dante network.

The Mix320-D system includes a D400-Dante A-Net Distributor that allows up to 32 channels to be patched from the Dante network to the personal mixing system inputs. The D400-Dante is also used to supply A-Net digital data and DC power to the mixers. The Mix320-D system includes six A320 Personal Mixer for the performers, plus six MT-1a Mic Stand Mounts for attaching the A320 mixers to mic stands, as well as all the Cat-5e cables you'll need to connect the products.

Intuitive Mixing

The A320 Personal Mixer gives performing and recording musicians simple, intuitive control over their monitor mixes. It features a 32-channel mix engine with 16 mono or stereo mix channels buttons and easy to use Stereo Placement controls.

Connect headphones, ear buds, or a wireless in-ear monitoring system to the Personal Mixer and you're ready to start mixing.

Distribute Power and Audio Over Cat-5

For distributing the A-Net digital data and DC power to the A320 Personal Mixers, the system includes the D400-Dante A-Net Distributor.

The D400-Dante also serves as the system's input device; it allows up to 32 channels from your Dante network to be assigned to the eight powered A-Net ports on its front panel. Stereo Link switches allow adjacent channels to be treated as a stereo pairs on the A320 Personal Mixers where they will appear on a single mix channel button.

In-Ears Included

The enhanced version of the Mix320-A system includes six MEE Audio M6 Pro IEMs. The earbuds feature detachable, replaceable cords and come with an assortment of flexible ear tips that reduce outside noise and allow you to easily find the most comfortable fit for your ears. Each IEM set also includes custom-engraved metal faceplates and a protective case.

System Options

The Mix320-D system uses a Dante network for its inputs. If you use a digital console, check out the Mix320-Y Personal Mixing System which includes a Y1 card for Yamaha® consoles for its inputs. Or, if you have an analog console or recording system, the Mix320-A Personal Mixing System is what you need. It includes the 16-channel, line-level AN-16/i Input Module as its front end.

The mixing system packages are also easy to expand when you're ready—just add more Personal Mixers and A-Net Distributors as needed.

Mix320-D Technical Specifications

A320 Specifications

Audio Output 1/4" TRS stereo, headphone or line level
Stereo Mix Output, Headphone/Line Tip: Audio Left;
Ring: Audio Right;
Sleeve: Ground
A-Net I/O 1 A-Net In, RJ45 connector;
Supports Pro16 and Pro16e
D/A Conversion 44.1/48kHz, 24-bit
Stereo Operation Stereo Link, per channel pair;
Set at the input module;
Variable pan per mono channel or pan/spread per stereo channel pair
Headphone Output 275 mW per side into 50 Ohms (both sides driven)
Output Impedance 5 Ohms
Freq. Response 3Hz-22kHz +0.2dB/-3dB at 50 Ohms
THD +N < 0.003%
Output Voltage for Personal Mixers 24VDC, 0.5 amp
Transmitted over the Cat-5e cable
Signal to Noise
(unweighted)
-106dB (measured with zero data into all channels)
Latency 0.880 msec (measured from analog input to analog output)
Pro16e A-Net Use Cat-5e (or better) cable;
Maximum 400 ft (122 m) between devices;
Supports Power Over A-Net
Cat-5 cable Use shielded Cat-5e (or better) cable to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
Power 24 VDC, 0.5 amp;
Power is supplied over the Cat-5 cable when connected to an Aviom A-Net Distributor
Dimensions 10.26" (260.6 mm) wide x 6.14" (155.95 mm) deep x 1.91" (48.51 mm) high
Weight 1.3 lb. (0.59 kg)
Options MT-1a Mic Stand Mount

D400-Dante Specifications

Dante Interface 32 channels (44.1/48kHz Sample Rate)
Dante Primary I/O RJ45 connector
Dante Secondary I/O RJ45 connector
Dante LEDs Network Activity (green);
1GB Network Connection Active (yellow)
A-Net Out to Personal Mixers Eight RJ45 connectors, powered
A-Net Out Pro16e A-Net;
RJ45 connector, unpowered
LEDs Power On (red); Network Sync (green)
Stereo Link Two 8-position DIP switch blocks (1-16, 17-32)
Output Voltage for Personal Mixers 24VDC, 0.5 amp
Transmitted over the Cat-5e cable
A-Net Cables Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
Unshielded Cat-5e cable may be used on all rear panel connections
Power Supply Internal, IEC connector
Input Voltage 100-120 VAC or 200-240 VAC (with selector switch); 50-60Hz @220 W max
AC Fuse Types 115V range: T2.5AL/250V
230V range: T1.25AL/250V
Dimensions 19" (482.6 mm) wide x 7.386" (187.6 mm) deep; 2U, 3.5" (88.9 mm) high
Weight 12.0 lbs (5.44 kg)
