AN-16/o v.4 Output Module
AN-16/o v.4 Output Module

Features

  • 16 balanced mic- or line-level outputs
  • Four-position output level switch per channel pair
  • +24, +18, and +4dBu line-level, or mic-level outputs
  • 48kHz, 24-bit D/A converters
  • DB25 output connectors

The AN-16/o v.4 Output Module connects to any Pro16 input module, console card, or A-Net distributor and provides 16 balanced line-level analog outputs using two DB25 multi-pin connectors. Four output levels, from mic to +24dBu, are available to easily accommodate the input level requirements of the device the AN-16/o v.4 output signals are being connected to.

Use the AN-16/o v.4 anywhere analog outputs are required: with the A640 and A360 and D800's Network Mix Back feature for wireless in-ears, on stage or at FOH in a digital snake, in the studio, or for a recording split. Adding a digital split to a Pro16 system is as simple as connecting an additional AN-16/o v.4 Output Module.

Compatibility Note: AN-16/o v.4 Output Modules with serial numbers 51162 and lower (from 2013 and before) are only compatible with the original version of the Pro16 A-Net protocol and not the higher channel count Pro16e version of A-Net. The Pro16e version of A-Net is used by the AN-16/i v.2 as well as the D800 and D400 series of A-Net Distributors.

Product Details

The AN-16/o v.4 Output Module is a 1U rack-mount 16-channel digital-to-analog converter for Pro16® digital snake and audio distribution systems. Digital audio transmitted to the AN-16/o v.4 via Aviom's A-Net® Pro16 digital audio transmission protocol is converted to analog using 24-bit, 48kHz converters.

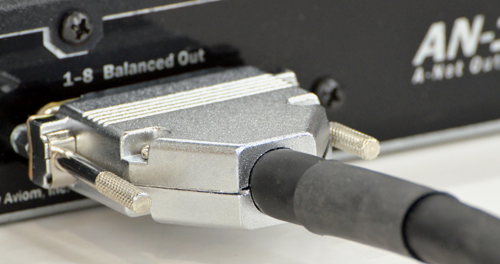

Sixteen balanced outputs are provided on the rear panel via DB25 multi-pin connectors. The DB25 connectors are wired to the analog standard, allowing you to purchase whatever cable length and connector format suits your application. The analog outputs can be set (per channel pair) to +24dBu, +18dBu, +4dBu, or mic level.

Connecting to Wireless In-Ear Monitors

In personal mixing systems using the A640 and/or A360 Personal Mixers with the D800 or D800-Dante A-Net Distributors, the AN-16/o v.4 simplifies connections to wireless IEM systems.

Each A640 or A360 Personal Mixer sends its stereo mix output back into the network which appears as a pair of channels on the AN-16/o v.4. Each AN-16/o v.4 supports up to eight A640 or A360 mixers. Simply patch the analog outputs on the AN-16/o v.4 into the IEM transmitter's inputs. No analog cables are required at the A640 or A360 on stage. Learn more about Network Mix Back.

Digital Snakes and Audio Networks

Use the AN-16/o v.4 anywhere analog outputs are required: on stage or FOH in a digital snake, in the studio, for a recording split, or in even the most complex audio networks. Adding a digital split to a Pro16 system is as simple as connecting an additional AN-16/o v.4 Output Module.

AN-16/o v.4 Technical Specifications

Audio Outputs 16 channels, balanced
Outputs DB25 multipin connectors (2); Tascam® analog audio pinout
Impedance balanced output for mic, +4dBu, and +18dBu; differential output for +24dBu

Breakout cables are not included
D/A Conversion 48kHz sample rate, 24 bit
Frequency Response 4Hz-22kHz
A-Net Input/Output one EtherCon Category 5 (RJ45 connector)
A-Net Expansion one EtherCon Category 5 (RJ45 connector)
Output Level Settings Four-position switch, per channel pair;
+24dBu, +18dBu, +4dBu, and Mic
Channel LED Indicators Signal Present and Clip, per channel
Metering LEDs; green: Signal Present; red: Clip; per channel
Maximum Output Level +24dBu
Output Impedance 226 ohms (+18dBu, +24dBu); 100 ohms (+4dBu and mic)
Freq. Response 4Hz-22kHz +0.2dB/-3dB
THD +N < 0.004%
Crosstalk -90dB
Bit Error Rate (BER) 10(-12)
Signal to Noise (unweighted) 92dB typical, A/D to D/A
Measured from AN-16/i to AN-16/o v.4 Output Module
Digital Connections A-Net In: 1; A-Net Out: 1; A-Net Expansion: 1;
Neutrik EtherCon connectors
A-Net Pro16 A-Net Expansion combines two A-Net streams (32 channels of audio) onto one Cat-5e cable;
uses unshielded Cat-5e UTP (or better) cable
Latency <0.620 msec (measured from analog input to analog output)
Power Supply
      Input Voltage
      Output Voltage
      Plug Size		 External, DC, universal switching type
100-240 volts, 50/60Hz, 30VA
24 VDC, 0.5 amp
2 mm
Power 24 VDC, 500mA
Dimensions 19" (482.6 mm) wide x 5.75" (146 mm) deep;
1U high
Weight 6.8 lbs. (3.08 kg)
Options SB4 System Bridge; used to combine up to four A-Net streams for transmission over one Cat-5e cable

DB25 breakout cables

Product Images

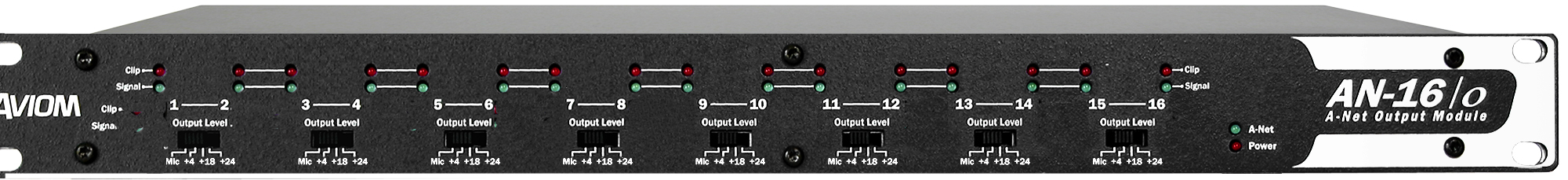

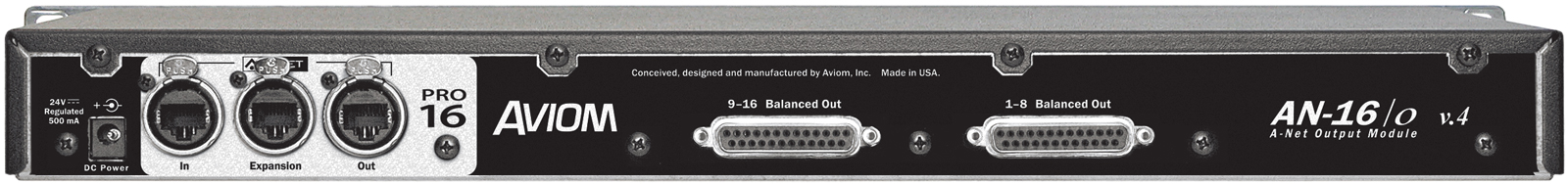

AN-16/o v.4 Output Module    AN-16/o v.4 Output Module
