Features
- Up to 16 channels in and 16 channels out simultaneously
- Variable sample rates: 44.1/48kHz or 88.2/96kHz
- Flexible and robust clocking allows simple console-to-console digital connections
- Supports remote control of 6416m and AllFrame mic preamp settings from select Yamaha digital consoles, using m-control™
- RS-422/232 Virtual Data Cable I/O (compatible with Yamaha® remote control protocol)
The powerful 6416Y2 A-Net Interface Card is a 16x16 Pro64® I/O card for Yamaha® digital devices. When connected to a Pro64 input device such as the 6416m Mic Input Module or the AllFrame Multi-Modular I/O System, the 6416Y2 can input up to 16 channels digitally into the Yamaha console. Remote head amp control is available by using m-control which sends remote control commands directly from the console channel to the mic preamp over the Pro64 network. Adding additional 6416Y2 cards to a console expands its capacity, allowing the creation of a compact digital snake with a direct digital connection to the console.
In addition to its 16 channel per card input capabilities, each 6416Y2 card can simultaneously output up to 16 channels, sending mix outputs or monitor feeds to the digital snake. With an ASI A-Net Systems Interface module added to the Pro64 network, Pro16 Series monitor mixing products like the A-16II and A-16R Personal Mixers can be used.
Product Details
The 6416Y2 A-Net Card supports up to 16 channels in and 16 channels
out simultaneously, depending on the Yamaha host product's capacity
and the selected system sample rate. Multiple 6416Y2 cards may be used in a
single host device (see the table below), providing up to 64 channels
in and 64 channels out simultaneously. Inputs and outputs may be

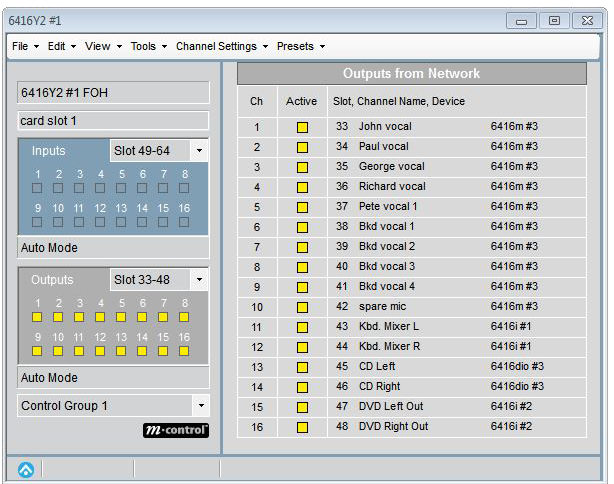

assigned and managed by using the free Pro64 Network Manager software. For digital snake
applications, the 6416m mic preamp's gain, phantom power, and high
pass filter can remote controlled directly from the Yamaha console
using m-control™.
User Control Data Support
In addition, the 6416Y2 A-Net Card supports two interface paths to the Pro64 network's revolutionary Virtual Data Cables™. The card features a front-panel DB9 connector for either RS-232 or RS-422 control data. In certain Yamaha digital consoles (such as the LS9 series), control data can be routed to the card through the backplane connector, as these consoles do not have DB9 remote control ports built in. Internal DIP switches allow the VDC data paths to be configured for a variety of uses, including passing control data for remote Yamaha AD8HR microphone preamps with compatible Yamaha digital consoles.
Note: While the 01v96 and 02R96 digital consoles are compatible with the 6416Y2 Card for digital audio I/O routing, no provision for controlling remote preamps via RS-422 is available on these consoles.
Note: The two-slot LS9-32 console sends head amp (HA) remote control data from the console's backplane only to expansion card slot #1of the console. This means that when using m-control, the 6416Y2 card that is set up for m-control communication must be installed in slot 1 of the console.
World Class Clocking
Pro64 audio networks featuring 6416Y2 A-Net Cards can be configured to slave to a host console or to pass clock information to the console through the card slot interface. All Pro64 products feature Aviom's exclusive clock management algorithms, ensuring pristine clocking throughout a network, including console-to-console communications.
6416Y2 A-Net Cards can be connected to the rest of the Pro64 network serially or in parallel, using a Pro64 Merger Hub such as the MH10 or MH10f.
Important Note: The original A-16 Personal Mixer (discontinued) is not compatible with the 6416Y2 Card even when connected to the ASI A-Net Systems Interface. Some early A-16R Personal Mixers built prior to the release of the Y1 card are also not compatible. Contact Aviom Customer Service for additional compatibility info.
Compatibility
The 6416Y2 A-Net Interface Card is compatible with the following Yamaha digital products. Note that the number of 6416Y2 Cards that can be used in each Yamaha device may be less than total number of available MY card slots in some cases. (Yamaha's recommendation for the number of cards that can be installed simultaneously in each product is based on the power available from the host's power supply.) 6416Y2 card is not compatible with Yamaha's DIO8(PM1D), AW2816, and AW4416 products.
| Model | MY Slots | 6416Y2 Cards |
|---|---|---|
| DM2000 | 6 | 5 |
| 02R96 | 4 | 3 |
| DM1000 | 2 | 2 |
| 01V96 | 1 | 1 |
| DME24N ** | 1 | 1 |
| DME64N | 4 | 4 |
| PM5D/PM5D-RH | 4 | 4 |
| M7CL | 3 | 3 |
| AW2400 | 1 | 1 |
| LS9-16 | 1 | 1 |
| LS9-32 | 2 | 2 |
| CL1 | 3 | 3 |
| CL3 | 3 | 3 |
| CL5 | 3 | 3 |
| ** To use a 6416Y2 Card that has a serial number before #10099 with the DME24N, contact Aviom Customer Support for upgrade information. | ||
6416Y2 Technical Specifications
| Channels | Up to 16 inputs and 16 outputs simultaneously Supports MY8 and MY16 modes | |
|---|---|---|
| Interface Format | Yamaha mini-YGDAI (MY) Expansion Card | |
| Sample Rates | 1x: 39.7-52kHz; 2x: 79.4-104kHz | 24-bit resolution |
| Max. Ambient Temp | 50°C | |
| Virtual Data Cables | RS-232/RS-422 DB9 connector; DIP switch configuration | |
| Control data from LS9 series backplane may be routed to VDCs; DIP switch configuration | ||
| A-Net | 2 EtherCon® RJ45 connectors | |
| A-Net Cable Length | 400 feet (120 meters) between devices | |
| A-Pro64 Network Latency | Analog input to analog output: <800µs | |
| Power Supply | +3.3V, +5V, +15V supplied by Yamaha host device | |
| Dimensions | 4.75"w x 6.25 "d x 1.5"h (120.7 x 158.8 x 38.1 mm) | |
| Weight | 0.8 pounds (0.36 kg) | |

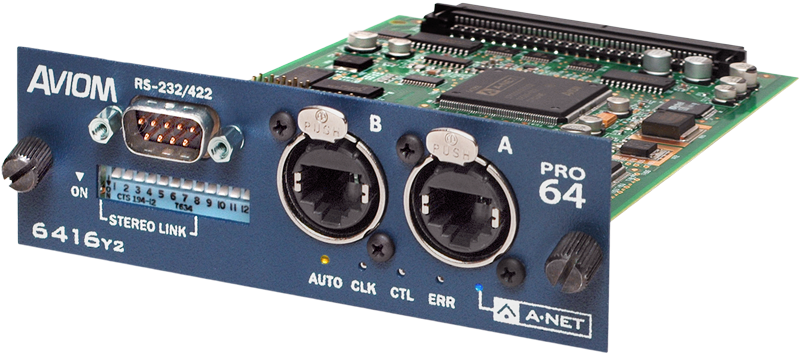

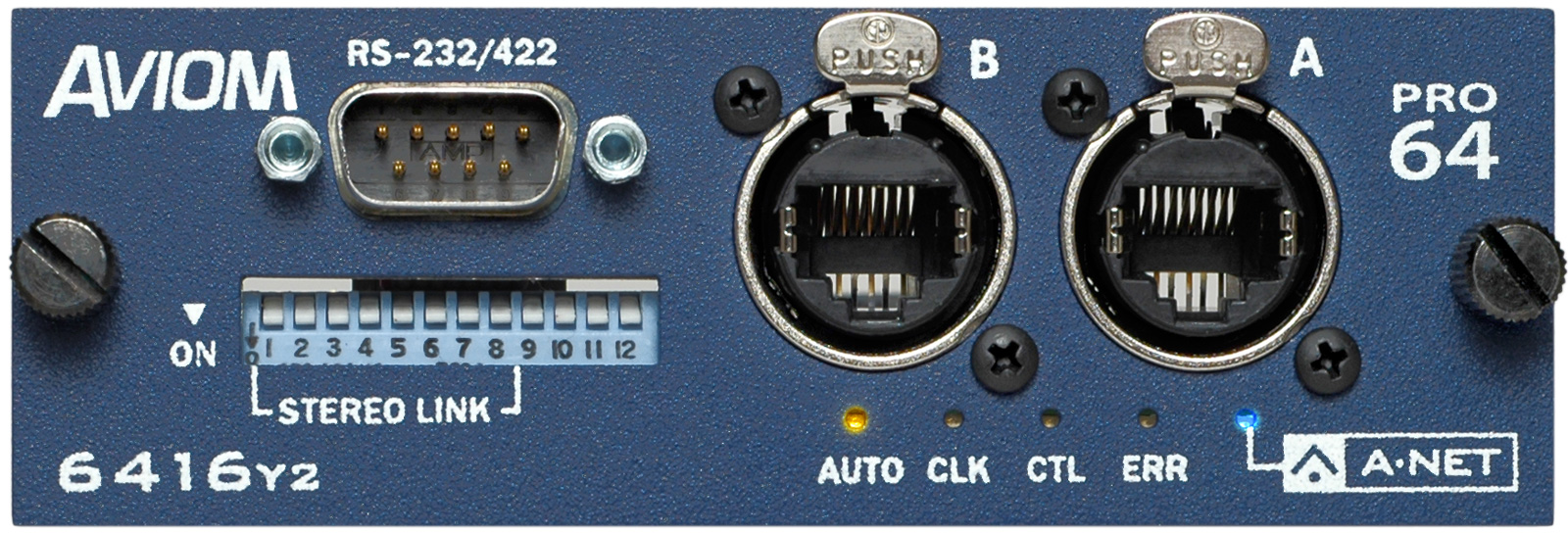

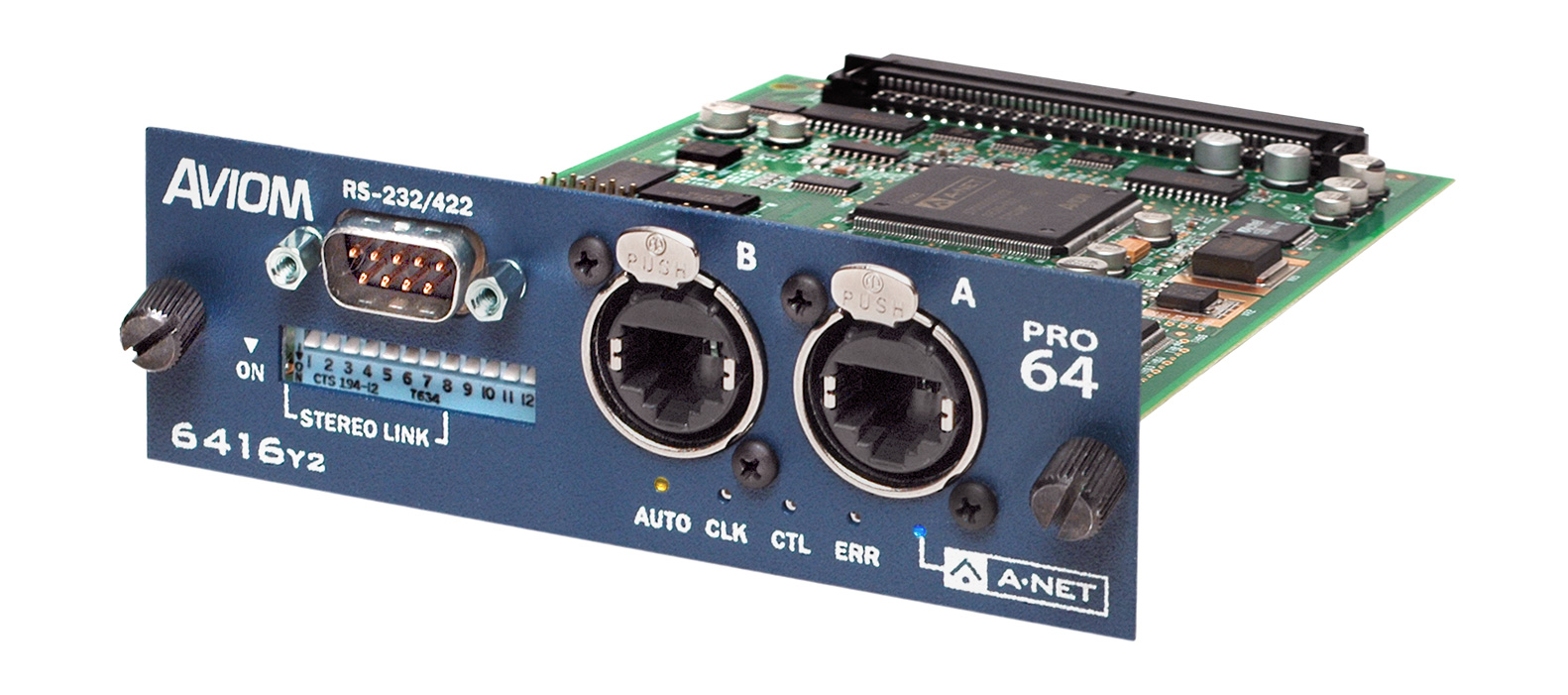

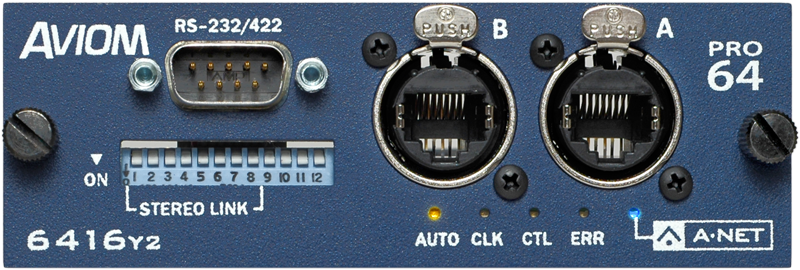

Product Images
