Features
- 16 state-of-the-art mic-level inputs (XLR)
- Passive splitter/alternate input (two DB25s)
- Continuously variable gain, phase, low cut filter, pad, and +48V phantom power per channel
- Remote controllable over A-Net with the RCI Remote Control Interface and MCS Mic Control Surface combination or from select Yamaha consoles, using m-control™
- Remote controllable via Pro64 Network Manager software
The 6416m Mic Input Module is Aviom's premier remote controllable 16-channel mic preamp for Pro64® digital snakes and audio networks. Use it as the head end of a digital snake or audio network to provide pristine A-to-D conversion of mic- and line-level signals.
The 6416m can be remote controlled in three ways: from the RCI Remote Control Interface and MCS Mic Control Surface combination, via m-control™ from Yamaha digital consoles, and/or by using the free Pro64 Network Manager software.
Product Details
The remote-controllable 6416m Mic Input Module provides 16 state-of-the-art mic-level analog inputs to a Pro64 system. Each input channel features continuous gain control, +48V phantom power, low cut filter, phase invert, mute, and a network activation button. With a switchable pad per channel, the 6416m also accepts balanced line-level inputs.
Simplified Remote Control

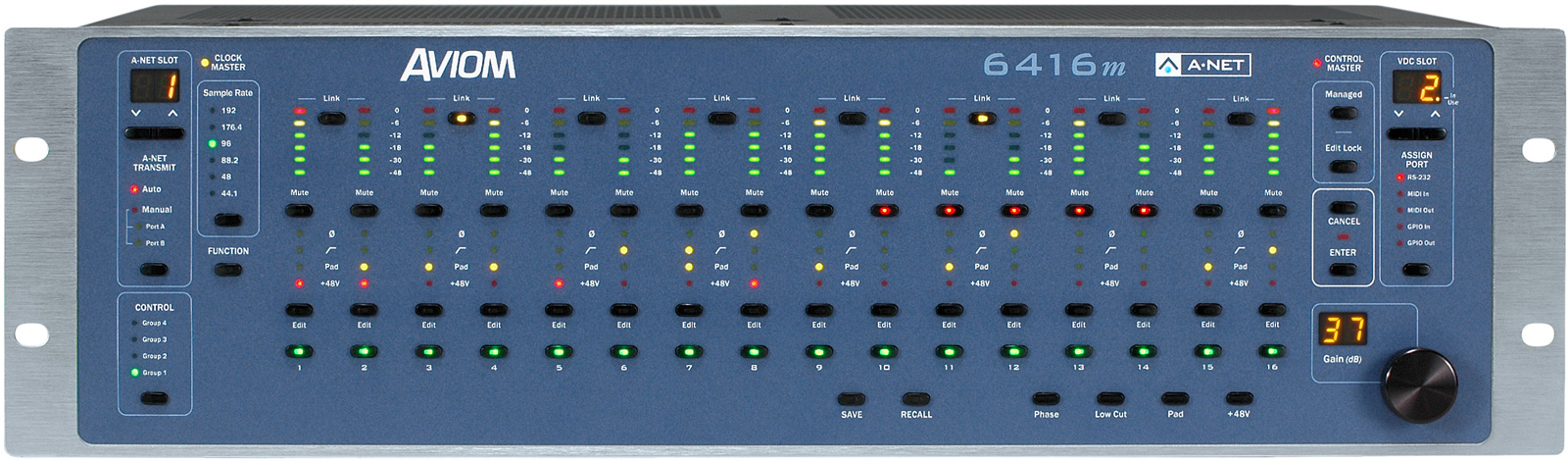

Audio settings for each channel can be configured directly from the 6416m front panel or controlled remotely using the optional RCI Remote Control Interface combined with the MCS Mic Control Surface. A single MCS can be used to control all 6416m Mic Input Modules in a Pro64 system or those assigned to a particular Control Group. Sixteen mic preamp presets can be saved in each 6416m to allow quick recall of commonly used settings.
The 6416m mic preamp gain can also be remote controlled directly from a Yamaha console when a 6416Y2 A-Net Interface Card is installed by using m-control™ which allows the gain, pad and phantom power changes sent form the console to be transmitted over the network.
To control a 6416m and the entire Pro64 network form a central location, use the free Pro64 Network Manager software. Its simple on-screen interface allows advanced functionality such as channel naming, device presets, and network-wide scene save and recall.
Pro64 A-Net supports three ranges of variable sample rates: 44.1/48kHz±, 96kHz±, and 192kHz±. No matter the sample rate, all 16 input channels on the 6416m are available for use. All audio is streamed at 24-bit resolution with no data compression at any time.
Connectivity

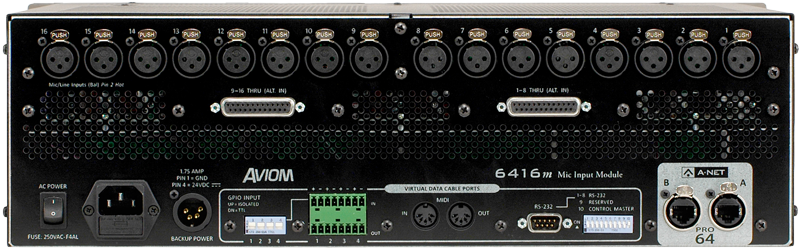

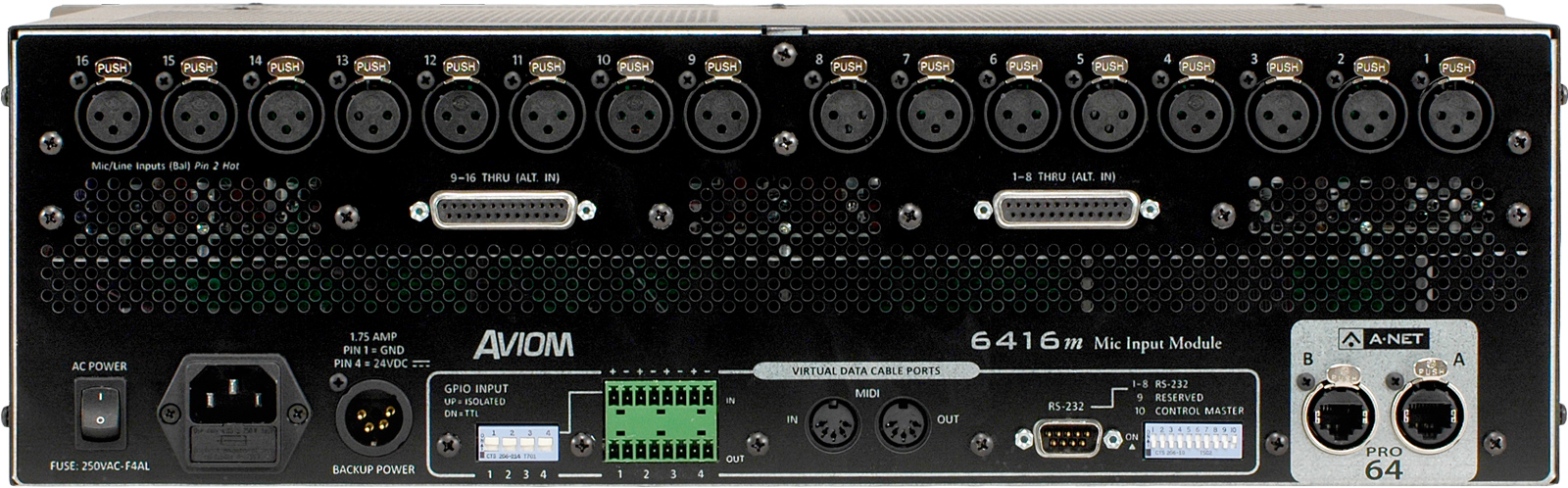

On the rear panel, the 6416m features both XLR jacks and DB25 multipin connectors for inputs and passive splits. A-Net network connections use heavy-duty locking EtherCon® connectors.
The 6416m includes I/O for Aviom's Virtual Data Cables™. The VDCs can be used for simultaneously distributing up to 14 channels of non-audio control data to any device on the Pro64 network. The 6416m provides VDC connectors for MIDI In, MIDI Out, RS232, and GPIO.
The 6416m also features the security of a rear-panel four-pin XLR connector for optional backup DC power.
6416m Technical Specifications
| Inputs | 16 channels; XLR |
|---|---|
| Passive Split/ Alternate Inputs | DB25 multipin; analog audio pinout |
| Differential Input Impedance | 3.6k ohms |
| Input Gain Range | 0-55dB, variable, in 1dB increments |
| Maximum Input Level | 0dB gain, Pad on = +24dBu 0dB gain, Pad off = 0dBu 55dB gain, Pad on = -31dBu 55dB gain, Pad off = -55dBu |
| Minimum Input Level for 0dBFS @ maximum gain | Pad on = -31dBu Pad off = -55dBu |
| Pad | -24dB, switchable per channel |
| Low Cut Filter | -3dB @85Hz, -18dB per octave; per channel |
| Phantom Power | +48 volts; per channel |
| Preset Memory | 16; saves all channel strip audio parameters |
| Sample Rates | 1x: 39.7-52kHz 2x: 79.4-104kHz 4x: 158.8-208kHz |
| Frequency Response | +/- 0.3dB 20-23kHz at 48kHz +/- 0.3dB 20-45kHz at 96kHz +/- 0.3dB 20-53kHz at 192kHz -3dB @ 2Hz (at all sample rates) |
| A/D Converters: | 24 bit |
| THD+N | 0.0015% @1.0kHz, -10dBFS 0.007% @ 1.0kHz, -1dBFS |
| Dynamic Range (noise floor) | 112dB |
| Crosstalk | -110dB @1kHz. 35dB gain |
| Equivalent Input Noise (EIN) | -127dBu |
| CMMR | 78dB @ 1.0kHz / 75dB @ 10kHz typical |
| A-Net | Two Category 5 (EtherCon RJ45 connectors) |
| Latency | Analog input to analog output: <800µs |
| A-Net Cable Length | 400 feet (120 meters) between devices |
| Virtual Data Cables | MIDI In, MIDI Out, 5-pin DIN RS-232, DB9 connector, DIP switch configuration GPIO In (x4); terminal block connectors; DIP switch configuration; TTL or isolated |
| Power Supply | Internal, universal switching type; standard IEC cable provided |
| Voltage | 100-240VAC, 50-60Hz, 55W |
| Backup Power | 4-pin XLR; 24 Volt DC Pin 1 = Ground; Pin 2/3 no connect; Pin 4 24VDC |
| Dimensions | (3U) 19" wide x 12" deep x 5.25" high (482.6 x 304.8 x 133 .3 mm) |
| Weight | 15 lb. (6.80 kg) |
| Maximum Ambient Operating Temperature | +50°C |
